    Fabricating a hot plate for my offset

    I’ve had my offset smoker for quite a while now, and it’s always fun comparing my offset to others. Lone Star Grillz have really nice models, and I like the idea of having a hot plate on top of the firebox.

    Said and done, I fabricated one.

    Since my firebox is insulated (a box in a box, with 20 mm spacing), I simply cut a hole in the outer box, fabricated a frame and a lid and welded it in place. Not too much work, and it was a fun weekend project. So now I can cook a pot of beans or warm up a bbq sauce while smoking. Nice!

    Here's the candidate (with yours truly), ready for some surgery

    Click image for larger version  Name:	offset-mod-1.jpg Views:	1 Size:	854.4 KB ID:	554022

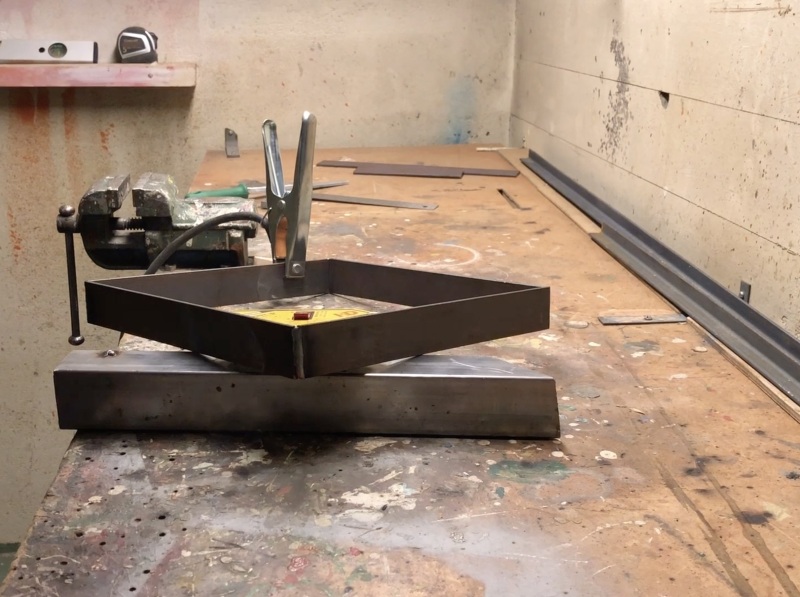

    Welding the frame that will be inset (using flat iron)

    Click image for larger version  Name:	offset-mod-2.jpg Views:	1 Size:	687.9 KB ID:	554023


    Fabricating the frame for the lid (using angle iron)

    Click image for larger version  Name:	offset-mod-3.jpg Views:	1 Size:	785.7 KB ID:	554025

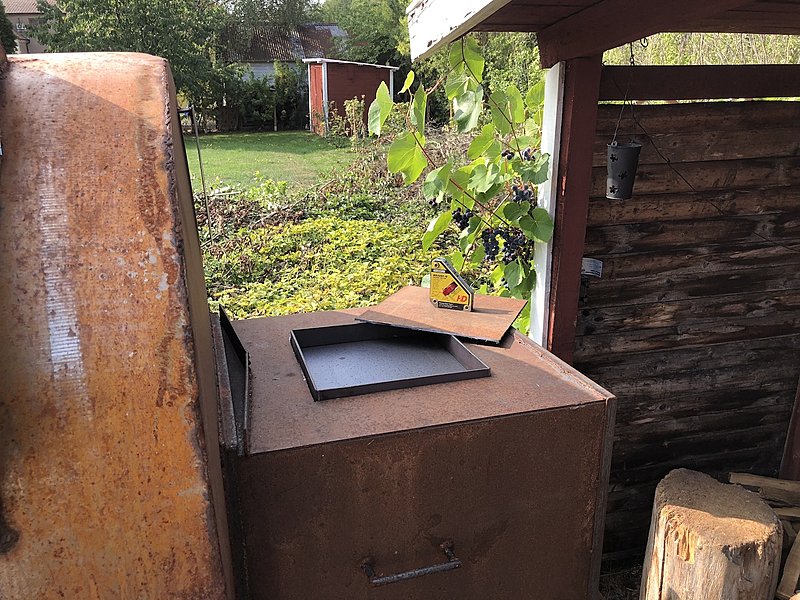

    And here's the hot plate, still some welding to do all around, plus finishing the lid.

    Click image for larger version  Name:	offset-mod-4.jpg Views:	1 Size:	716.6 KB ID:	554024

    Here's me finishing up the lid

    Click image for larger version

Name:	offset-mod-5.jpg
Views:	28
Size:	1.07 MB
ID:	554028


    For anyone interested, here's a YouTube video with me fabricating:


    Last edited by Henrik; August 24, 2018, 05:00 AM.
  • BourBonQ
    Club Member
    • Oct 2017
    • 773
    • Lowcountry of South Carolina
    • Pit Barrel Cooker
      Blaze 32" Gasser with Sear Station and Rotisserie
      Jenn-Air 6 Burner w/ Dual Oven and Stainless Flat Top
      Camp Chef Explorer 60EX with Grill Box and Griddle
      Thermoworks Thermapen Mk4
      Maverick ET-733 2-Probe Wireless Thermometer
      Thermopro TP20 2-Probe Wireless Thermometer
      Anova 900W Sous Vide Immersion Circulator
      Selection of Grandma's Antique Cast Iron Cookware
      Bayou Classic Stainless Steel Oyster/Turkey Cooker
      Weber Standard Size Chimney Starter
      Foodsaver Vac Sealer

    #2
    Nicely done. You make that look way too easy. Skillz!

    Comment

    • Ahumadora
      Club Member
      • Oct 2015
      • 2047
      • Pilar Buenos Aires, Argentina

      #3
      Great tutorial Henrik. Always great to see what you are up to.

      On most of my trailer pits I add a hotplate on top out of 3/16" 2 functions: Hot plate for onions, bell peppers or pulled pork buns. 2./ Raises the firebox for ground clearance.
      Attached Files

      Comment


      • Henrik
        Henrik commented
        Editing a comment
        Great looking smoker! Could you just explain how adding a hot plate raises ground clearance? It could be I'm just thick, but I don't get it. Or do you mean you physically move the firebox up for ground clearance?

      • Steve R.
        Steve R. commented
        Editing a comment
        I had the same question.

      • Ahumadora
        Ahumadora commented
        Editing a comment
        I use propane tanks for these and cut out the upper part of the tank (firebox) so I can physical move the firebox up without it being to high on the pit.
    • Frozen Smoke
      Club Member
      • Nov 2017
      • 1528
      • Northern Mn

      #4
      Nice skills you got there. Wish I had the ability to do such things. On both my offsets, excuse me on my one offset (sold the other one last week) the top of the fire box is also a door. So nice loading wood in from the top instead of the side. I have propane burners mounted on the trailer for warming things.

      Comment


      • Henrik
        Henrik commented
        Editing a comment
        Propane burners sounds nice! I need to be able to run the smoker anywhere without electricity, so that would work well for me too.

      • Frozen Smoke
        Frozen Smoke commented
        Editing a comment
        Same here Henrik I need to be able to run without power when I do weddings and other events. I invested in a propane run 3 bay steam table a few years ago. Best investment I have made. I never have to deal with multiple roasting pans and how I’m going to power them in order to keep food warm for serving.
        I’ll be using it tomorrow in fact at a outdoor wedding.

      • Henrik
        Henrik commented
        Editing a comment
        Very cool, Frozen Smoke, kick some (pork) butt at that wedding!
    • RonB
      Club Member
      • Apr 2016
      • 12558
      • Near Richmond VA
      • Weber Performer Deluxe
        SNS
        Pizza insert
        Rotisserie
        Smokenator 1000
        Cookshack Smokette Elite
        2 Thermapens
        Chefalarm
        Dot
        lots of probes.
        CyberQ

      #5
      Thanx Henrik. A fun video.

      Comment

      • Troutman
        Club Member
        • Aug 2017
        • 7198

        • OUTDOOR COOKERS

          BBQ ACCESSORIES

          WOOD & PELLET PREFERENCES

          SOUS VIDE

          INDOOR COOKWARE


        #6
        Rude Boy gets an upgrade...nice !!!

        Comment

        • ddmcwhirter
          Charter Member
          • Nov 2014
          • 127
          • Leon Springs northwest of San Antonio, Texas

          #7

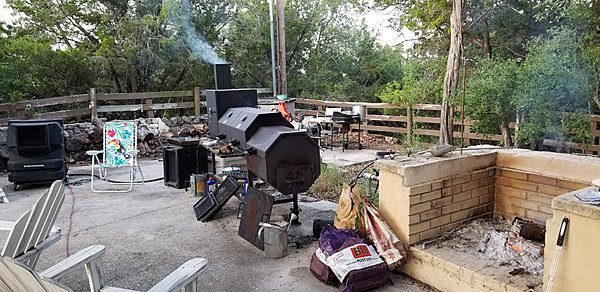

          Click image for larger version

Name:	20180727_072354.jpg
Views:	29
Size:	3.69 MB
ID:	554193
          Open the firebox lid and there's grooves in which to slide a grate or the steel plate (20" x 20"). The lid can still be closed. It occurred to me to use the plate to pre-sear a twenty pound ribeye roast (cooled to about 36F to prevent any greying below the crust). Also, with the plate in, all the heat goes into the smoke boxes...I've got the first two boxes up to 550F...lit off the accumulated grease one time and had flames coming out the stack (Holy *&$#!)...closed it all off and got away in case it might explode.

          Comment

          • Spinaker
            Moderator
            • Nov 2014
            • 10523
            • Land of Tonka
            • John "J R"
              Instagram: JRBowlsby
              Smokin' Hound Que
              Minnesota/ United States of America

              ********************************************
              Assistants
              Dexter (Beagle mix)
              Kinnick (American Foxhound)
              ************************

              Grills/Smokers/Fryers
              Big Green Egg (Large) X2
              Blackstone 36" Outdoor Griddle 4-Burner

              Broil King Keg
              Karubeque C-60
              Kamado Joe Jr. (Black)
              Lodge L410 Hibachi
              Pit Barrel Cooker
              Pit Barrel Cooker 2.0
              R&V Works FF2-R-ST 4-Gallon Fryer

              Weber Spirit Gasser
              ******************.
              Thermometers
              FireBoard (Base Package)
              Thermoworks ThermaPen (Red)
              Thermoworks MK4 (Orange)
              **************

              Accessories
              BBQ Dragon
              Big Green Egg Plate Setter
              Benzomatic TS4000 Torch X 2
              Benzomatic TS800 High Temp Torch X 2

              Bayou Classic 44 qt Stainless Stock Pot
              Bayou Classic 35K BTU Burner

              Digi Q DX2 (Medium Pit Viper Fan)
              Dragon VT 2-23 C Torch
              Eggspander Kit X2
              Field Skillet No. 8,10,12

              Finex Cat Iron Line
              FireBoard Drive
              Lots and Lots of Griswold Cast Iron
              Grill Grates
              Joule Water Circulator
              KBQ Fire Grate

              Kick Ash Basket (KAB) X4
              Lots of Lodge Cast Iron
              Husky 6 Drawer BBQ Equipment Cabinet
              Large Vortex
              Marlin 1894 .44 Magnum
              Marquette Castings No. 13 (First Run)
              Smithey No. 12
              Smokeware Chimney Cap X 3
              Stargazer No.10, 12
              Tool Wizard BBQ Tongs
              Univex Duro 10" Meat Slicer
              ********************************
              Fuel
              FOGO Priemium Lump Charcoal
              Kingsford Blue and White
              Rockwood Lump Charcoal
              Apple, Cherry & Oak Log splits for the C-60
              **************************

              Cutlery
              Buck 119 Special
              Dexter 12" Brisket Sword
              Global
              Shun
              Wusthof
              *******
              Next Major Purchase
              Lone Star Grillz 24 X 48 Offset

            #8
            Awesome Henrik. I must say, I would be a little nervous taking a grinder too the top of my firebox! That was a little hard to watch. LOL.

            Nice work brother!

            Comment


            • Henrik
              Henrik commented
              Editing a comment
              Thanks! Well, I built it, so I knew the construction inside out. If I had bought a commercial one? Then I’d be nervous too :-)

            • Spinaker
              Spinaker commented
              Editing a comment
              Touche! Henrik
