    SmokeFire Glow Plugs

    Has anyone experienced a glow plug problem with their Weber SmokeFire? I work for the fire department and we got one at our station. We’ve had it a month and I loved it so much I dropped a grand on one at home. Had it a week and attempted 3 cooks. All 3 failed to continue heating about an hour into the cooks. No pellet jams and plenty of pellets in hopper. Blower continues to work and display continues to say heating but the temp falls to nil. Weber is sending a new glow plug, BUT now the one at my fire station is doing the same thing. Weber won’t warranty it because it’s not for “home” use. I called one of our other fire stations and they are experiencing the same issue. Are we alone out there or is this a problem for Weber?
  • Huskee
    Administrator
    • May 2014
    • 15812
    • central MI, USA
    • Follow me on Instagram, huskeesbarbecue

      Smokers / Grills
      • Yoder loaded Wichita offset smoker
      • PBC
      • Grilla Silverbac pellet grill
      • Slow 'N Sear Deluxe Kamado (SnSK)
      • Masterbuilt Gravity 560
      • Weber 22" Original Kettle Premium (copper)
      • Weber 26" Original Kettle Premium (black)
      • Weber 26" Original Kettle Premium (light blue)
      • Weber Jumbo Joe Gold (18.5")
      • Weber Smokey Joe Silver (14.5")
      • Brinkmann cabinet charcoal smoker (repurposed)

      Thermometers
      • (3) Maverick XR-50: 4-probe Wireless Thermometers
      • (7) Maverick ET-732s
      • (1) Maverick ET-735 Bluetooth (in box)
      • (1) Smoke X4 by ThermoWorks
      • Thermapen MkII, orange
      • ThermoPop, yellow
      • ThermoWorks ChefAlarm
      • Morpilot 6-probe wireless
      • ThermoWorks Infrared IRK2
      • ThermoWorks fridge & freezer therms as well

      Accessories
      • Instant Pot 6qt
      • Anova Bluetooth SV
      • Kitchen Aide mixer & meat grinder attachment
      • Kindling Cracker King (XL)
      • BBQ Dragon
      • Weber full & half chimneys, Char-Broil Half Time chimney
      • Weber grill topper
      • Slow 'N Sear Original, XL, and SnS Charcoal Basket (for Jumbo Joe)
      • Drip 'N Griddle Pan, 22' Easy Spin Grate, and Elevated Cooking grate, by ABCbarbecue
      • Pittsburgh Digital Moisture Meter

      Beverages
      • Favorite summer beer: Leinenkugels Summer & Grapefruit Shandy, Hamm's, Michelob Ultra Pure Gold
      • Fav other beer: DAB, Sam Adams regular, Third Shift amber or Coors Batch 19, Stella Artois
      • Fav cheap beers: Pabst, High Life, Hamm's & Stroh's
      • Most favorite beer: The one in your fridge
      • Wine: Red- big, bold, tannic & peppery- Petite Sirah, Zinfandel, Cabernet Sauv, Sangiovese, Syrah, etc
      • Whiskey: Buffalo Trace, Eagle Rare, E.H. Taylor, Blanton's, Old Forester 1870, Elijah Craig, Basil Hayden's. Neat please.
      • Scotch: Current favorite- The Arran (anything by them), Glenmorangie 12yr Lasanta, sherry cask finished. The Balvenie Double Wood, also like Oban 18yr, and The Glenlivet Nadurra (Oloroso sherry cask finished) among others. Neat please.

      About me
      Real name: Aaron
      Location: Farwell, Michigan- near Clare. (dead center of lower peninsula)

      Occupation:
      • Healthcare- Licensed & Registered Respiratory Therapist (RRT) for MidMichigan Health, a University of Michigan Health System.

    #2
    The glow plug shouldn't be needed once the fire is lit. Seems to me this is flame-out....but it's odd that this is happening on 3 different cookers. A bad plug should mean it doesn't light at all, not dies out an hour into the cook.

    Comment


    • emtphillips
      emtphillips commented
      Editing a comment
      Thank you for responding Huskee. I’m an offset guy and this is my first ever pellet cooker. What’s a flame out and and what generally causes them?

    • Huskee
      Huskee commented
      Editing a comment
      emtphillips A flame-out is simply when the fire dies. Sometimes it happens, and can happen in any pellet cooker out there. If the fire just dies after having been going, simply power down, then power back up. If the glow plug heats back up and the fire starts again, it's not the glow plug. It could be wind (not very likely), bad pellets (likely), etc.
  • jfmorris
    Club Member
    • Nov 2017
    • 3920
    • Huntsville, Alabama
    • Jim Morris

      Cookers
      • Slow 'N Sear Deluxe Kamado (2021)
      • Camp Chef FTG900 Flat Top Grill (2020)
      • Weber Genesis II E-410 w/ GrillGrates (2019)
      • Weber Performer Deluxe 22.5" w/ GrillGrates & Slow 'N Sear & Drip ‘N Griddle & Party Q & Rotisserie (2007)
      • Custom Built Offset Smoker (304SS, 22"x34" grate, circa 1985)
      • King Kooker 94/90TKD 105K/60K dual burner patio stove
      • Lodge L8D03 5 quart dutch oven
      • Lodge L10SK3 12" skillet
      • Anova
      Thermometers
      • Thermoworks Smoke w/ Wifi Gateway
      • Thermoworks Dot
      • Thermoworks Thermapen Classic
      • Thermoworks RT600C
      Beverages
      • Whatever I brewed and have on tap!

    #3
    Is there some commonality such as the brand of pellets in use at home and at the fire station? I know from glitchy 's extensive use of the SmokeFire (two different ones) that it can be sensitive to the brand of pellets used. The Weber branded pellets I believe are a little smaller than most, and may feed more freely. And as Huskee already said - this sounds like flame out, not a ignition problem.

    Comment

    • glitchy
      Club Member
      • Jul 2019
      • 1272
      • Central IA
      • MAK 2 Star General
        Weber Summit Charcoal Grill
        w/ Big Joetisserie, SnS LP, and Vortex
        Weber Genesis II - S-345
        Weber Traveler
        Fireboard 2 Drive
        Anova Precision Sous Vide
        All the (pellet) grills I’ve loved before:
        Traeger Junior Elite^
        GMG DB
        Traeger Texas Elite
        Memphis Pro§
        Traeger Pro 575
        CampChef SmokePro STX (ugly grills need love too)
        Weber SmokeFire EX4§
        Traeger Select
        CampChef Woodwind WiFi w/SearBox^
        Weber SmokeFire EX4§

        ^ = Favorites
        § = Love/Hate Relationships

      #4
      Are the finger guards still installed on them? The finger guards can cause pellets to bridge over the auger opening which can be hard to diagnose. What often happens is by the time you open the grill or hopper lids to check things out you shake the grill just enough that the bridge collapses. I happened to catch mine doing this a couple times. I gently opened the hopper and then ran me fingers though the pellets and saw and felt a bunch of them fall into the chute.

      The other thing could be the Smoke Boost. Are you using that setting? It’s been causing a lot of flameouts recently for people.

      Comment


      • glitchy
        glitchy commented
        Editing a comment
        To add a bit more detail, the Smoke Boost issues were introduced in the fall (October maybe) firmware update. As jfmorris and Max Good have mentioned, the SmokeFire definitely prefers Weber pellets. I had less issues with other brands after removing the finger guard though, but some brands have blends that don’t seem to provide BTUs the Weber controller is expecting, causing different quirks. I know it isn’t the best advice to remove a safety, but that guard is a horrible engineering design.

      • glitchy
        glitchy commented
        Editing a comment
        If you would happen to decide to remove it, don’t take all the screws out at once as they also hold the auger chute to the hopper, so do a couple at a time. As well, be careful not to drop screws into the chute.
    • Max Good
      AmazingRibs.com's Keeper of the Flame
      • Jun 2014
      • 932
      • Max Good

      #5
      My first thought was the same as jfmorris Smokefire like small diameter pellets. Are you using Weber brand pellets?

      Comment

      • bleusmoke
        Club Member
        • Feb 2021
        • 8
        • Redondo Beach CA

        #6
        It could be a software issue, do you have the most recent update? I experienced this same issue and it was the auger. Do you know if you have the one piece auger or two piece? If you have the two piece auger contact Weber customer service and they will send you the new auger assembly.

        Comment

        • CaptainMike
          Club Member
          • Nov 2015
          • 2966
          • The Great State of Jefferson
          • 24X40 Lone Star Grillz offset smoker
            Weber Summit Charcoal Grill w/SnS and DnG (Spartacus)
            Old school big'ol Traeger w/Pro controller (Big Tex)
            2 W22's w/SnS, DnG (1 black, 1 copper) (Minions 1 and 2)
            20+ y/o many times rebuilt Weber Genesis w/GrillGrates (Gas Passer)
            20 x 30 Santa Maria grill (Maria, duh)
            Bradley cabinet smoker (Pepper Gomez)
            36" Blackstone griddle (The Black Beauty)
            Fireboard
            Thermoworks Smoke and Thermapen.

          #7
          All I know is that after he's done Max Good donates the cookers he reviews to local fire departments and such. Just saying.....
          Last edited by CaptainMike; April 2, 2021, 01:18 PM.

          Comment


          • zero_credit
            zero_credit commented
            Editing a comment
            Got it. We blame Max for everything here. Shame on you Max!

            (kidding...)
        • BDCarp04
          Club Member
          • Jan 2017
          • 48

          #8
          Sorry, late update on this! I suck - I really need to check the board more often.

          I have had glow plug issues as well as of late (a writeup for another day). I have been working with Weber to correct the issue, and they asked for several pictures of different things inside the unit. I ended up sending them a three minute video of my startup with the heat shield off and they told me that the glow plug should be glowing for around two minutes during the preheat. With mine you could see the smoke and the pellets starting to smolder and then I got a pop of flame right at the end of the three minutes with no glow from the plug during that pre heat time.

          I was to the point that I was ready to move on from the Smokefire entirely, but was asked if I would try one last thing first.

          They sent me a new glow plug bracket, and "our new glow plug." I was surprised by that wording but the order sheet that was emailed to me listed Glow Plug Igniter SF '21. I do not know if this is some kind of tweak or redesign, but my package arrived today (I can see it sitting on my porch) and I'll dig into it tonight when I get home to see what I have waiting for me. Will let you all know if I notice any differences or any changes after installation.
          Product Name Part # Qty Price Discount Price Item Total
          Glow plug bracket assembly 68956 1 $0.00 $0.00
          Glow Plug Igniter SF '21 69436 1 $0.00 $0.00

          Comment

          • BDCarp04
            Club Member
            • Jan 2017
            • 48

            #9

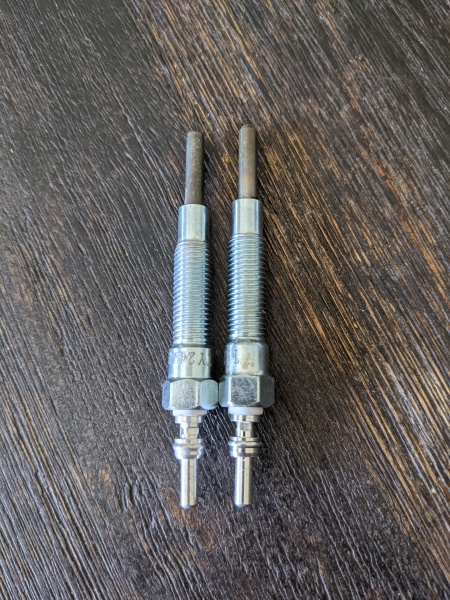

            So, just first impressions out of the box, the plug is similar, but not identical to the replacements I have. Length seems to be the same, but while the old replacement plug is flat on the end, the new plug has a bit of a button top.

            Old plug - TY 24V 1947

            New plug - TY 24V 2044D

            I won't have a chance to actually replace the plug and bracket until later this week, so I'll save any differences there for a later reply. This was just quick, out of the box impression.
            Attached Files

            Comment

            • BDCarp04
              Club Member
              • Jan 2017
              • 48

              #10
              Didn't notice anything different about the glow plug brackets themselves, but upon installing the new plug and bracket I had smoke right away as soon as the pellets fell down the chute and touched the plug. Much faster and different than what I had seen previously. Had a roaring flame within a minute or minute thirty rather than a small pop of flame after 3+ minutes.

              At this point I've only been able to use it once since then, but I'll update again if I have any other issues.
