Years ago I built my first tube burner for my large offset smoker. Since then I built a set of gas burners for a regular gas grill in my back yard. I have always wanted to do a full grill build, well this spring it finally happened.
I have attached a few pictures of the build. The whole grill is 304 stainless steel including all hardware aside from the gas valves and knobs, which are the only things I didn't build on the grill.

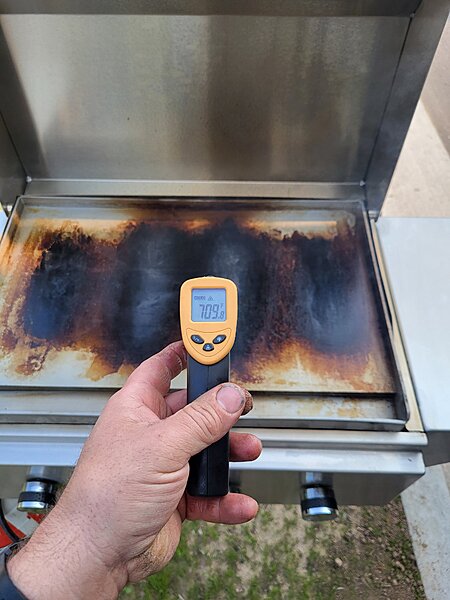

Everything worked out the way I expected with the exception of having to raise the griddle to allow more air flow for the burners. In the last pic I have the temp of the griddle at about half to three-quarter throttle on the burners.
It is currently residing on the back of my camper, but can also be put onto a base that I need to do some updating to.
Thanks for looking,
Jeremy
![Click image for larger version
Name: 20230402_112853[1].jpg
Views: 236
Size: 79.3 KB
ID: 1438314](filedata/fetch?id=1438314&d=1686936401&type=medium)
![Click image for larger version
Name: 20230417_052544[1].jpg
Views: 211
Size: 86.6 KB
ID: 1438315](filedata/fetch?id=1438315&d=1686914704&type=medium)
![Click image for larger version
Name: 20230422_173954[1].jpg
Views: 201
Size: 84.1 KB
ID: 1438316](filedata/fetch?id=1438316&d=1686915417&type=medium)
![Click image for larger version
Name: 20230510_184756[1].jpg
Views: 211
Size: 94.5 KB
ID: 1438317](filedata/fetch?id=1438317&d=1686914494&type=medium)
![Click image for larger version
Name: 20230521_173452[1].jpg
Views: 206
Size: 62.3 KB
ID: 1438318](filedata/fetch?id=1438318&d=1686914560&type=medium)
I have attached a few pictures of the build. The whole grill is 304 stainless steel including all hardware aside from the gas valves and knobs, which are the only things I didn't build on the grill.
Everything worked out the way I expected with the exception of having to raise the griddle to allow more air flow for the burners. In the last pic I have the temp of the griddle at about half to three-quarter throttle on the burners.
It is currently residing on the back of my camper, but can also be put onto a base that I need to do some updating to.
Thanks for looking,
Jeremy
