    Testing Home Made Blower Controller in BGE with KBB

    Been fooling around with a home made blower controller off and on for a while. Recently got an adapter for my BGE from EBay, so yesterday decided to try it out with some KBB instead of the normal chunk. I expected a lot of ash, so I removed the fire grate and put 7 pounds KBB in the Kick Ash Charcoal Basket. Lit it near the center with one of the Weber cubes for 15 minutes then added the plate setter, grill, and probes for the controller and a Thermoworks thermometer. Closed the lid. Bottom vent fully closed and top vent barely cracked. Set the controller for 225º. It ran about 21 hours, mostly at 225º with short excursions to 250º and 275º yesterday afternoon. Pictures:

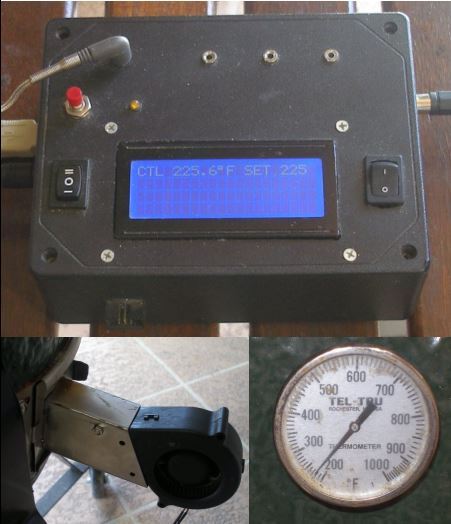

    Montage of controller:
    Click image for larger version

Name:	Captureppt.JPG
Views:	113
Size:	33.9 KB
ID:	882130

    KBB in basket:

    Click image for larger version

Name:	light.jpg
Views:	91
Size:	108.7 KB
ID:	882131

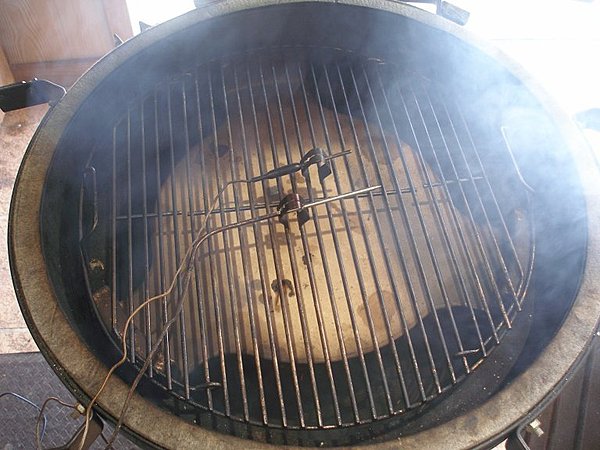

    Plate Setter and probes:

    Click image for larger version

Name:	probes.jpg
Views:	92
Size:	81.9 KB
ID:	882132

    Temperature trace:

    Click image for larger version

Name:	plot.jpg
Views:	92
Size:	49.5 KB
ID:	882133

    The controller is working quite well, still 1-2 degrees higher than the set, but that's easily fixable. It agreed well with the dome thermometer and Thermoworks digital. New nerdy toy!

    KBB works, but there was a tremendous amount of ash, at least 3 inches in the bottom of the fire box. I should have taken a picture, but forgot until after the shop vac cleaned it up. It was an interesting experiment, but I'll be sticking with lump.


  • Jerod Broussard
    Moderator
    • Jun 2014
    • 9673
    • East Texas
    • Pit Barrel Cooker "Texas Brisket Edition"
      Weber One Touch Premium Copper 22" Kettle (gift)
      Slow 'n Sear for 22" Kettle
      Weber One Touch Premium Black 26" Kettle (gift)
      Slow 'n Sear XL for 26" Kettle (gift)
      Weber Smokey Joe Gold
      Weber Rapid Fire Chimney
      Vortex
      Maverick ET-732 White
      Maverick ET-732 Copper
      2- Auber SYL-1615 fan systems(Awesome!!!!!!!!)
      Thermoworks Thermapen w/ Back light (gift)
      Thermoworks Timestick
      Cambro Model 300MPC110 w/ Winco SS Pans
      B & B and Kingsford Charcoal
      B & B Pellets

    #2
    Neat. If it goes +/- 10 degrees it still beats an electric oven by FAR!

    Comment

    • TripleB
      Club Member
      • May 2017
      • 627
      • La Crescenta
      • Jambo Backyard Smoker
        Weber Smokey Mountain (22" & 18.5")
        Portable Kitchen 360
        Portable Kitchen Grill
        Pit Barrel Cooker
        Weber "Brownie" Circa 1978 22"
        Weber Gas Grill, Silver A
        BBQ Guru ATC
        Favorite Beer: Peroni
        Favorite Sports Teams: Rams, Dodgers, Kings, UCLA Bruins

      #3
      Very cool. I always appreciate those who can tinker and create. I’m also impressed with the tel-tru thermostat. I have one on my PK360 and it’s on the money with the thermoWorks probe. Good job.

      Comment

      • RonB
        Club Member
        • Apr 2016
        • 12550
        • Near Richmond VA
        • Weber Performer Deluxe
          SNS
          Pizza insert
          Rotisserie
          Smokenator 1000
          Cookshack Smokette Elite
          2 Thermapens
          Chefalarm
          Dot
          lots of probes.
          CyberQ

        #4
        Great job!

        Comment

        • Henrik
          Founding Member - Moderator Emeritus
          • Jul 2014
          • 4236
          • Stockholm, Sweden

          #5
          Very cool!

          Comment

          • Skip
            Founding Member
            • Jul 2014
            • 3231
            • Blue Earth, Minnesota
            • MAK Pellet Grill, Large BGE, Weber Kettle with SnS, Weber Gasser, Pit Barrel Cooker, Cast Iron Pans & Griddle, Grill Grates, Mostly Thermoworks Thermometers

            #6
            Fun experiment! Thanks for posting.

            Comment

            • Spinaker
              Moderator
              • Nov 2014
              • 10522
              • Land of Tonka
              • John "J R"
                Instagram: JRBowlsby
                Smokin' Hound Que
                Minnesota/ United States of America

                ********************************************
                Assistants
                Dexter (Beagle mix)
                Kinnick (American Foxhound)
                ************************

                Grills/Smokers/Fryers
                Big Green Egg (Large) X2
                Blackstone 36" Outdoor Griddle 4-Burner

                Broil King Keg
                Karubeque C-60
                Kamado Joe Jr. (Black)
                Lodge L410 Hibachi
                Pit Barrel Cooker
                Pit Barrel Cooker 2.0
                R&V Works FF2-R-ST 4-Gallon Fryer

                Weber Spirit Gasser
                ******************.
                Thermometers
                FireBoard (Base Package)
                Thermoworks ThermaPen (Red)
                Thermoworks MK4 (Orange)
                **************

                Accessories
                BBQ Dragon
                Big Green Egg Plate Setter
                Benzomatic TS4000 Torch X 2
                Benzomatic TS800 High Temp Torch X 2

                Bayou Classic 44 qt Stainless Stock Pot
                Bayou Classic 35K BTU Burner

                Digi Q DX2 (Medium Pit Viper Fan)
                Dragon VT 2-23 C Torch
                Eggspander Kit X2
                Field Skillet No. 8,10,12

                Finex Cat Iron Line
                FireBoard Drive
                Lots and Lots of Griswold Cast Iron
                Grill Grates
                Joule Water Circulator
                KBQ Fire Grate

                Kick Ash Basket (KAB) X4
                Lots of Lodge Cast Iron
                Husky 6 Drawer BBQ Equipment Cabinet
                Large Vortex
                Marlin 1894 .44 Magnum
                Marquette Castings No. 13 (First Run)
                Smithey No. 12
                Smokeware Chimney Cap X 3
                Stargazer No.10, 12
                Tool Wizard BBQ Tongs
                Univex Duro 10" Meat Slicer
                ********************************
                Fuel
                FOGO Priemium Lump Charcoal
                Kingsford Blue and White
                Rockwood Lump Charcoal
                Apple, Cherry & Oak Log splits for the C-60
                **************************

                Cutlery
                Buck 119 Special
                Dexter 12" Brisket Sword
                Global
                Shun
                Wusthof
                *******
                Next Major Purchase
                Lone Star Grillz 24 X 48 Offset

              #7
              Very Cool! I love these experiments! Thanks for sharing this with us.

              21 hours is a solid burn time. I have always had trouble getting that done with KBB in my Kamados. I have found that the KBB Ceramic stuff is a little better.

              Comment

              • JCGrill
                Club Member
                • Mar 2017
                • 1729
                • Minneapolis / St Paul burbs
                • Charcoal - 22" Weber Kettle
                  Gas - Saber
                  Smoker - Green Mountain Daniel Boone
                  Portable - Charbroil Tabletop Propane Grill

                #8
                So you bought some controls and put them together?

                Comment

                • glitchy
                  Club Member
                  • Jul 2019
                  • 549
                  • Central IA
                  • Weber Summit Charcoal Grill
                    w/ Big Joetisserie, SnS LP, and Vortex
                    Weber SmokeFire EX4
                    Weber Q100
                    Fireboard 2 Drive
                    Anova Precision Sous Vide

                  #9
                  Did you build totally on your own or did you use some of the HeaterMeater plans and software? I built a HeaterMeter years ago and it was fun to tinker with. I was getting tired of chasing probe noise when the Fireboard came out and moved over to that and threw my homemade in a drawer.

                  Comment

                  • johnec00
                    Charter Member
                    • Aug 2014
                    • 564
                    • Orlando, Florida
                    • Equipment:
                      '88 Vintage Fire Magic gasser with over 3000 cooks to its credit
                      18 Inch Weber Kettle (Rescued from neighbor's trash)
                      Rotisserie for 18 inch kettle
                      Master Forge propane smoker
                      Pit Barrel Cooker
                      Smokey Joe with mini WSM mod
                      Garcima paella burner
                      Anova Sous Vide
                      Slaiya Sous Vide (gift)
                      2X Thermoworks cooking thermometer
                      DIY 4 channel bluetooth thermometer
                      LEM grinder, sausage stuffer and meat slicer (all gifts)

                      Favorite Beer:
                      Key West Wheat

                    #10

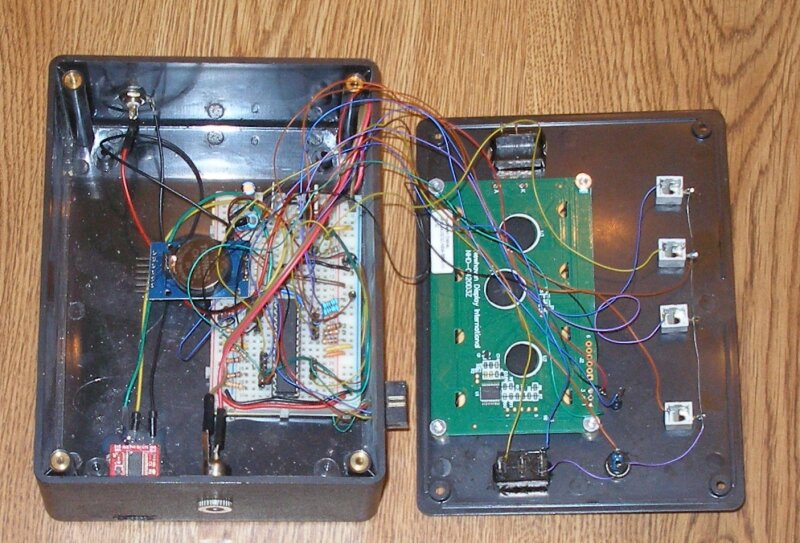

                    and JCGrill Both the circuit and software are completely my own. So far, the controller is still on perfbord as I fiddle with getting it to transmit wirelessly to a Visual Studio program on a PC.

                    Click image for larger version  Name:	inside.jpg Views:	0 Size:	313.1 KB ID:	882622
                    Last edited by johnec00; July 18, 2020, 02:57 PM.

                    Comment

                    • JCGrill
                      Club Member
                      • Mar 2017
                      • 1729
                      • Minneapolis / St Paul burbs
                      • Charcoal - 22" Weber Kettle
                        Gas - Saber
                        Smoker - Green Mountain Daniel Boone
                        Portable - Charbroil Tabletop Propane Grill

                      #11
                      Super cool. I'm a controls guy, but that's above my pay grade. I use off the shelf controllers when I need to do something. Which of course is cost prohibitive for something like this. Haven't done a bread board since I was in college.

                      Comment


                      • johnec00
                        johnec00 commented
                        Editing a comment
                        I did sort of the opposite. Never touched a breadboard in college or almost 40 years as a mechanical engineer. After retirement, I got intrigued with the little micro-controllers . . . about the size of an overgrown finger nail and cost about 2 bucks. Tremendous capability. Anyway, keeps me from drinking too much.
                    • aladdin4d
                      Club Member
                      • Sep 2018
                      • 111
                      • St Louis
                      • GMG Davy Crockett, MHP WNK

                      #12
                      Can you give us any nitty gritty details on the...wait a minute! You're trying to have this communicate wirelessly to a.....to a PC? That's keeping it real! I ended up getting a Tappecue just because it has a public api I could use with PowerShell.

                      Comment

                      • Black99vette
                        Club Member
                        • Jun 2016
                        • 378
                        • Aurora, IL

                        • Smokers & Grills
                          • Weber Original Kettle Premium 26"
                          • Weber 22" Performer Deluxe
                          • Weber 22"
                          • Weber Smokey Mountain 18.5
                          • Weber Smokey Joe
                          • Char-Broil Promo H2O Smoker
                          • Cal Flame P Series P4
                          • Coleman Road Trip Grill (Tailgating)

                          Thermometers
                          • No name brand
                          • A wireless unit - not sure of the brand

                          Accessories
                          • Slow 'N Sear
                          • Drip 'N Griddle Pan
                          • Bar-B-Que PartyQ
                          • Weber Rapid-Fire Chimney
                          • Smokenator

                          Beverages
                          • Beer: Sam Adams, Heineken
                          • Other: Tequila, Margarita

                          Hobbies
                          • Grilling / Smoking & Cooking
                          • Work Working
                          • Home Improvement / DIY

                          About Me
                          Real Name: Wayne
                          Location: Aurora, IL

                          Occupation:
                          • Software Engineer Manager - Home Automation, Security / Access Control & Video Systems

                        #13
                        Very cool, been on my bucket list for some time (Along with 100 other things).

                        Comment

                        • SparkDog
                          Club Member
                          • Dec 2018
                          • 71
                          • Amarillo
                          • Hunsaker Vortex Drum, Weber 2-Burner Spirit Gas Grill and 22" Weber Kettle with SNS on the way.
                            When time permits, I will also brew some beer and ride bicycles

                          #14
                          johnec00 I have thought about doing something similar until I get to the programming. What type of algorithm are you using to control the fan? I imagine there is a relay that turns the fan on and off but I don't think it would work like the solid state relay that controls my kettle temperature on my brewing set up. I have a little Party Q for my weber and the fan just seems to turn on and off with no variation in pattern that I can detect when at or near temperature. I would be interested to hear the details on the programming.

                          Comment


                          • johnec00
                            johnec00 commented
                            Editing a comment
                            I use a PID (proportional - integral - derivative) algorithm to control the blower. It outputs fan voltage between 12 and 2 volts depending on how far the measured temperature differs from the desired temperature.
                            Here's a geeky explanation: https://en.wikipedia.org/wiki/PID_controller

                          • johnec00
                            johnec00 commented
                            Editing a comment
                            When I was in college in the late 60s, the latest and greatest programing language was something called BASIC. When I started fooling with microcontrollers some years ago, I purchased a development system called BASCOM that uses BASIClike language. If I was starting out, I would look into something called ARDUINO which is an open source hardware/software system that is supported by hundreds of user routines. Just searched, they have a tutorial with software that does what my controller does.

                          • SparkDog
                            SparkDog commented
                            Editing a comment
                            johnec00 thanks for your reply. I use the arduino to control my kettle for brewing. That uses the PID to turn the heating element on and off. I never thought to vary the fan speed. I just had on/off in my mind like my kettle and the Party Q. I think you have shown me what my next project should be

                        Announcement

                        Collapse

                        Meat-Up in Memphis 2021

                        Join us in Memphis for our Meat-Up! Space is limited to 400, secure your spot by booking early!
                        Click here for details. (https://amazingribs.com/memphis)
                        See more
                        See less
                        Working...
                        X
                        Meat-Up in Memphis

                        T-Shirts & More T-Shirts & More
                        Order men's and women's T-Shirts, Sweatshirts, Aprons, Mugs, Caps, Tote Bags, Flasks, and more, all imprinted with the Pitmaster Club logo. There's even a spiral bound journal where you can make notes on your cooks.

                        Cool Embroidered Shirt Cool Embroidered Shirt
                        This beautifully embroidered shirt is the same one Meathead wears in public and on TV. It's wash and wear and doesn't need ironing (really!), but it is a soft cottonlike feel. Choice of four colors and both men's and women's.

                        Click here for more info.

                        Support ARC

                        Many merchants pay us a small referral fee when you click our links and purchase from them. On Amazon it works on everything from grills to diapers, they never tell us what you bought, and it has zero impact on the price you pay, but has a major impact on our ability to improve this site! And remember, we only recommend products we love. If you like AmazingRibs.com, please save this link and use it every time you go to Amazon.

                        https://tinyurl.com/amazingribs

                        Placeholder

                        Spotlight

                        These are not ads or paid placements. These Are Some Of Our Favorite Tools And Toys.

                        These are products we have tested, won our top awards, and are highly recommend. Click here to read how we test, about our medals, and what they mean.

                        Use our links when you buy things

                        Many merchants pay us a small referral fee when you click our links and purchase from them. On Amazon it works on everything from grills to diapers, they never tell us what you bought, it has zero impact on the price you pay, but has a major impact on our ability to improve this site! If you like AmazingRibs.com, please save this link and use it every time you go to Amazon

                        https://tinyurl.com/amazingribs




                        If you have a Weber Kettle, you need the Slow 'N' Sear

                        Placeholder

                        The Slow 'N' Sear turns your grill into a first class smoker and also creates an extremely hot sear zone you can use to create steakhouse steaks.

                        Click here for our article on this breakthrough tool


                        The Good-One Is A Superb Grill And A Superb Smoker All In One

                        Placeholder

                        The Good-One Open Range is dramatically different from a traditional offset smoker. By placing the heat source behind and under the smokebox instead of off to the side, Open Range produces even temperature from left to right, something almost impossible to achieve with a standard barrel shaped offset.

                        Click here to read our complete review


                        Griddle And Deep Fryer In One

                        Placeholder

                        The flat top does the burgers and the fryer does the fries. Use the griddle for bacon, eggs, and home fries. Or pancakes, fajitas, grilled cheese, you name it. Why stink up the house deep frying and spatter all over? Do your fried chicken and calamari outside. Blackstone's Rangetop Combo With Deep Fryer does it all!

                        Click here to read our detailed review and to order


                        The Pit Barrel Cooker May Be Too Easy

                        Placeholder

                        The PBC has a rabid cult following for good reason. It is absolutely positively without a doubt the best bargain on a smoker in the world. Period. This baby will cook circles around the cheap offset sideways barrel smokers because temperature control is so much easier.

                        Click here to read our detailed review and the raves from people who own them


                        The Undisputed Champion!

                        Placeholder

                        The Thermoworks Thermapen MK4 is considered by the pros, and our team, to be the single best instant read thermometer. The MK4 includes features that are common on high-end instruments: automatic backlight and rotating display. Don't accept cheap substitutes.

                        Click here to read our comprehensive Platinum Medal review


                        Grilla Pellet Smoker proves good things come in small packages

                        Placeholder

                        We always liked Grilla. The small 31.5" x 29.5" footprint makes it ideal for use where BBQ space is limited, as on a condo patio.

                        Click here for our review on this unique smoker


                        Delta by Nuke,
                        Stylish and Affordable
                        Gaucho Grill

                        Placeholder

                        Delta by Nuke burns wood or charcoal and comes with an adjustable height grill grate. This Argentinian grill will get your flame on!

                        Click here to read our complete review


                        Genesis II E-335
                        A Versatile Gasser That Does It All!

                        Placeholder

                        Weber’s Genesis line has long been one of the most popular choices for gas grillers. The new Genesis II E-335 offers solid performance, a sear burner for sizzling heat and an excellent warranty.

                        Click here to read our complete review


                        GrillGrates Take Gas Grills To The Infrared Zone

                        Placeholder

                        GrillGrates(TM) amplify heat, prevent flareups, make flipping foods easier, kill hotspots, flip over to make a fine griddle, and can be easily rmoved from one grill to another. You can even throw wood chips, pellets, or sawdust between the rails and deliver a quick burst of smoke.

                        Click here for more about what makes these grates so special


                        Is This Superb Charcoal Grill A Kamado Killer?

                        Placeholder

                        The PK-360, with 360 square inches of cooking space, this rust free, cast aluminum charcoal grill is durable and easy to use. Four-way venting means it's easy to set up for two zone cooking with more control than single vent Kamado grills. It is beautifully designed, completely portable, and much easier to set up for 2-zone cooking than any round kamado.

                        Click here to read our detailed review of the PK 360

                        Click here to order directly and get an exclusive AmazingRibs.com deal


                        Our Favorite Backyard Smoker

                        Placeholder

                        The amazing Karubecue is the most innovative smoker in the world. The quality of meat from this machine is astonishing. At its crux is a patented firebox that burns logs above the cooking chamber and sucks heat and extremely clean blue smoke into the thermostat controlled oven. It is our favorite smoker, period.

                        Click here for our review of this superb smoker


                        Masterbuilt MPS 340/G ThermoTemp XL Propane Smoker

                        Placeholder

                        This is the first propane smoker with a thermostat, making this baby foolproof. Set ThermoTemp's dial from 175° to 350°F and the thermostat inside will adjust the burner just like an indoor kitchen oven. All you need to do is add wood to the tray above the burner to start smokin'.

                        Click here to read our detailed review


                        Digital Thermometers Are Your Most Valuable Tool And Here's A Great Buy!

                        Placeholder

                        A good digital thermometer keeps you from serving dry overcooked food or dangerously undercooked food. They are much faster and much more accurate than dial thermometers. YOU NEED ONE!

                        Click here to read our complete review


                        Track Up To Six Temperatures At Once

                        Placeholder

                        FireBoard Drive 2 is an updated version of a well-received product that sets the standard for performance and functionality in the wireless food thermometer/thermostatic controller class.

                        Click here for our review of this unique device


                        The Cool Kettle With The Hinged Hood We Always Wanted

                        Placeholder

                        Napoleon's NK22CK-C Charcoal Kettle Grill puts a few spins on the familiar kettle design. In fact, the hinged lid with a handle on the front, spins in a rotary motion 180 degrees. It's hard to beat a Weber kettle, but Napoleon holds its own and adds some unique features to make the NK22CK-C a viable alternative.

                        Click here for more about what makes this grill special


                        Finally, A Great Portable Pellet Smoker

                        Placeholder

                        Green Mountain's portable Davy Crockett Pellet Smoker is one mean tailgating and picnic machine. But it's also gaining popularity with people who want to add a small, set it and forget it pellet smoker to their backyard arsenal. And with their WiFi capabilities you can control and monitor Davy Crocket from your smart phone or laptop.

                        Click here to read our detailed review and to order
